Welded Mesh Fence

Welded Mesh Fence

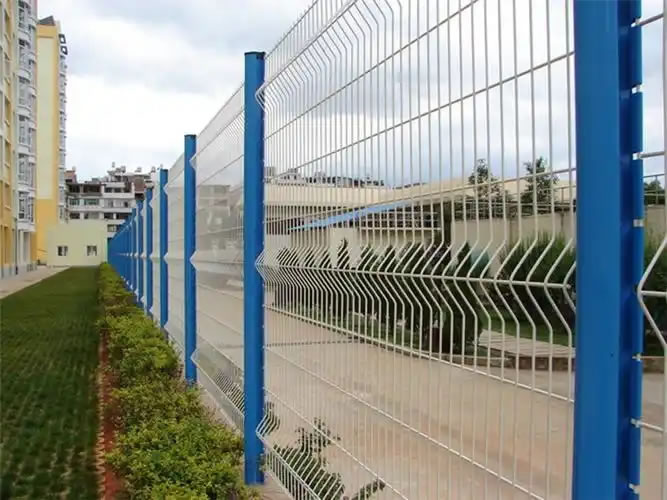

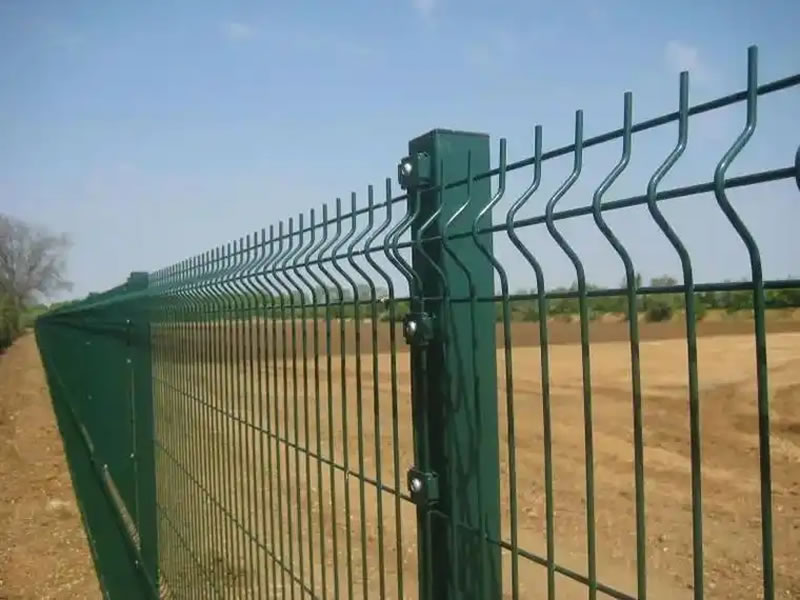

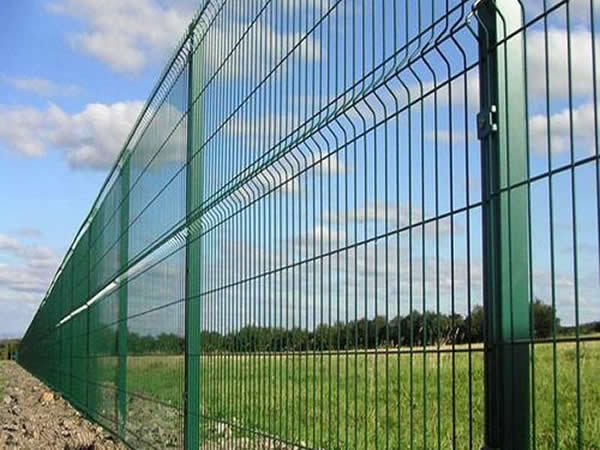

Welded mesh fence is a rigid and durable fencing system made from low carbon steel or stainless steel wires welded at intersections. It is widely used for property boundaries, industrial sites, schools, parks, and security enclosures. Classified by mesh size, wire diameter, and coating (galvanized, PVC-coated, or powder-coated), it offers strong visibility, anti-climb design, and corrosion resistance. Common types include 3D curved welded mesh, double wire fence, and anti-climb high-security fence.

Wire Diameter: The wire is usually 3.0 mm to 6.0 mm thick. Thicker wires are used for stronger and more secure fences.

Mesh Size: Common mesh openings include 50×200 mm, 75×150 mm, and 100×300 mm, depending on the fence type.

Panel Width: Fence panels are usually 2.0 m to 3.0 m wide. 2.5 m is the most common width.

Panel Height: Panel height ranges from 1.0 m to 3.0 m. Common heights include 1.2 m, 1.8 m, and 2.4 m.

Post Size: Posts are often 40×60 mm, 60×60 mm (square), or φ48 mm, φ60 mm (round), depending on the fence.

Fence Type: Types include 3D curved fences, double wire fences, and 358 anti-climb fences for different uses.

Surface Treatment: Surfaces are galvanized, PVC-coated, or powder-coated to protect against rust and weather.

Color Options: Common colors are green, black, gray, and white. Custom colors are also available.

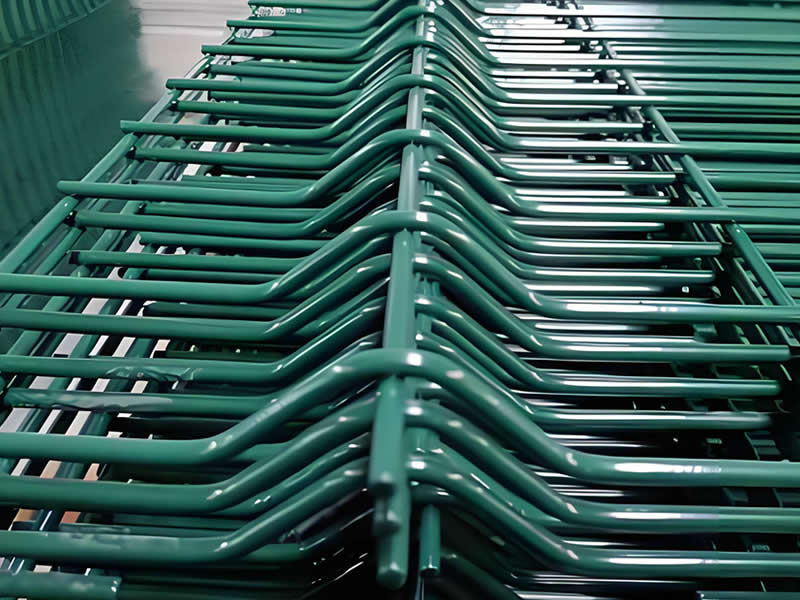

Panel Bends: 3D panels have 2 to 4 V-bends to make the fence stronger and more stable.

Accessories: Fences come with clips, bolts, clamps, and base plates for easy and secure installation.
