Barrier Gabion Fence

Barrier Gabion Fence

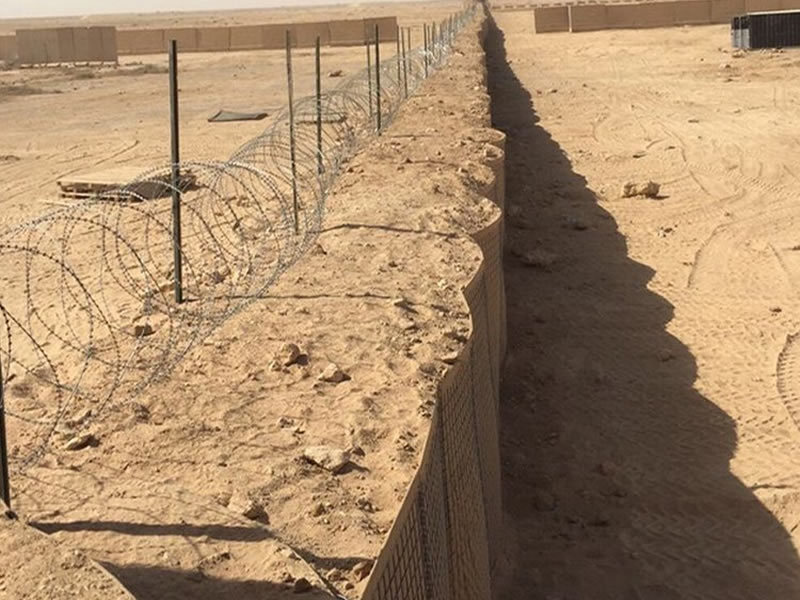

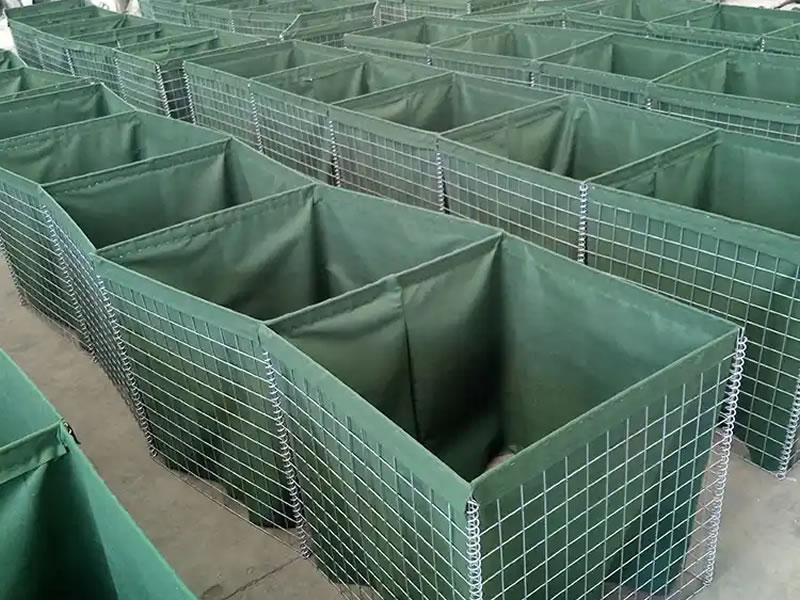

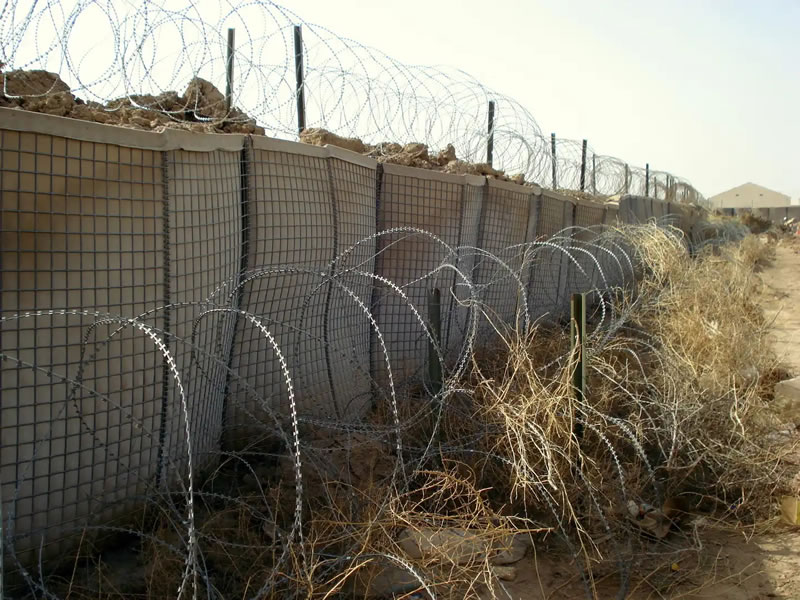

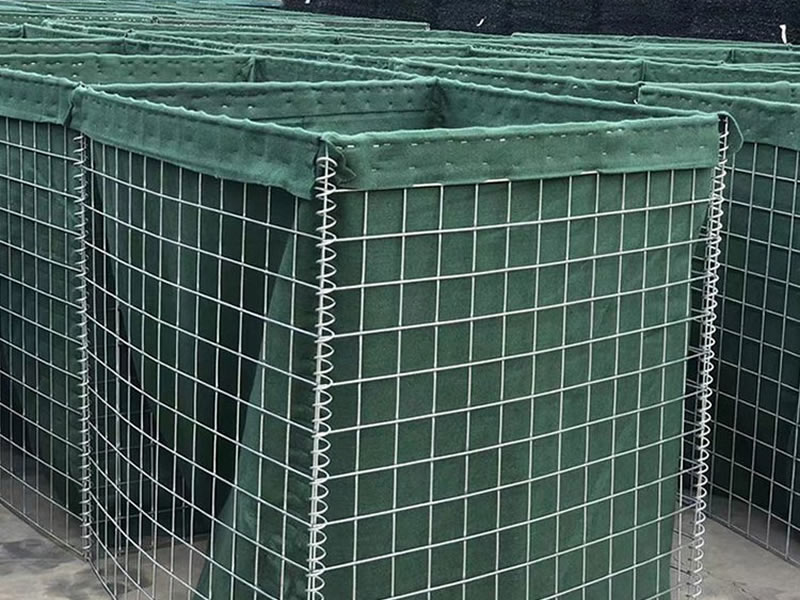

A barrier gabion fence is a collapsible wire mesh container lined with geotextile fabric, primarily used for military defense and flood control. It can be quickly deployed and filled with sand or earth to form protective walls and blast barriers. Classified by size and application—such as military blast walls, perimeter security, and flood barriers—it is available in single- or multi-cell configurations. These structures offer rapid installation, high strength, and modular flexibility for both emergency and long-term protection.

Wire Diameter: Usually 4.0 mm to 5.0 mm thick for strong protection.

Wire Type: Made from galvanized or Galfan-coated steel wire to prevent rust.

Mesh Size: Common mesh openings are 75×75 mm or 100×50 mm.

Geotextile Liner: Lined with UV-resistant geotextile fabric to hold the fill inside.

Length: Standard unit lengths range from 1.0 m to 10.0 m.

Width: Typical widths are between 1.0 m and 1.5 m.

Height: Heights usually range from 0.6 m to 2.1 m.

Cells per Unit: Each barrier has 5 to 12 cells, depending on its size.

Filler Material: Filled with sand, earth, gravel, or crushed stone.

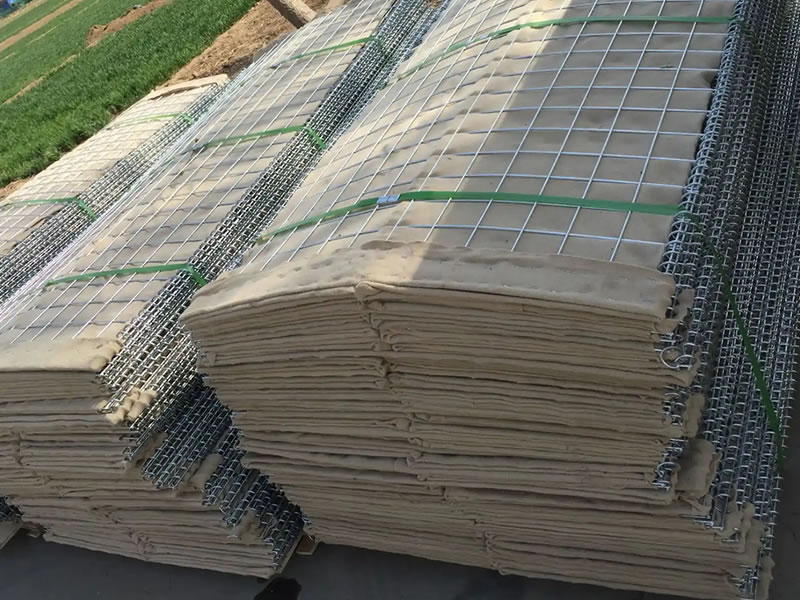

Assembly Method: Delivered flat, expanded and connected on-site, then filled with a loader.
